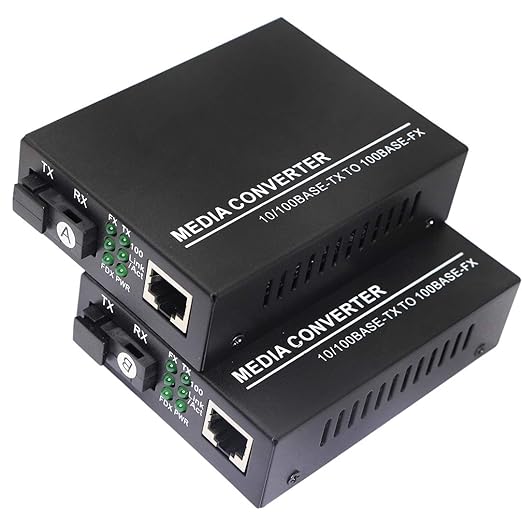

Product Overview

The 10/100M Fiber Media Converter is a versatile networking device designed to convert Ethernet signals to fiber optic signals and vice versa. Perfect for enterprise networks, telecom, FTTH, and industrial fiber deployments, this converter supports both multimode and single-mode fiber, enabling long-distance, reliable data transmission. Compact and energy-efficient, it is ideal for desktop or wall-mounted installation.

Supports 10/100 Mbps Ethernet and 100M fiber ports for flexible network expansion.
Wide optical range: Single-mode 1310/1490/1550 nm (20 km).
Switching capacity 0.4 Gbps with throughput up to 0.2976 Mpps.
Packet buffer 448K and MAC address table 1K for stable network performance.
Supports Jumbo Frame up to 1552 bytes and store-and-forward transfer mode.
Complies with IEEE 802.3, 802.3u, 802.3x standards and industrial EMI/EMS shock, vibration, and free-fall tests.
Wide operating environment: -10°C to 50°C, storage up to -40°C to 70°C, and humidity 10–90% non-condensing.
Compact, durable design (94 × 70 × 26 mm) with low power consumption (DC 5V input).
LED indicators for power, full-duplex, fiber link/activity, and Ethernet link/activity.
Comes with power adapters, user manual, and qualification card for plug-and-play setup.

Technical Parameters (10/100M Fiber Media Converter)

Parameter	Specification
Power	DC 5V, Adapter AC 100–240V, Converter DC 5V 2A
Ethernet Interface	1 × 10/100M RJ45 port
Fiber Interface	1 × 100M fiber port Multimode: 850/1310 nm (0–2 km) Single-mode: 1310/1490/1550 nm (0–120 km)
Switching Capacity	0.4 Gbps
Throughput	0.2976 Mpps
Packet Buffer	448K
MAC Address Table	1K
Jumbo Frame	1552 bytes
Transfer Mode	Store and forward
MTBF	100,000 hours
Network Protocol	IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX/FX), IEEE802.3x (Flow Control)
Network Medium	10Base-T: Cat3/4/5 UTP ≤100m 100Base-TX: Cat5 or above UTP ≤100m
Optical Media	Multimode: 50/125, 62.5/125, 100/140 μm Single-mode: 8/125, 8.7/125, 9/125, 10/125 μm
Standards & Certifications	EMI: FCC Part 15, CISPR(EN55032) class A EMS: EN61000-4-2, EN61000-4-4 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Safety: CE, FCC, RoHS
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-40°C ~ 70°C
Humidity	Working: 10–90% non-condensing Storage: 5–90% non-condensing
Mechanical Size	Product: 94 × 70 × 26 mm Package: 245 × 190 × 60 mm
Weight	Net: 0.2 × 2 kg Gross: 0.7 kg
Packing Info	MEAS: 620 × 400 × 510 mm Packing Qty: 40 pairs Packing Weight: 29.5 kg
LED Indicators	PWR, FDX, FX Link, TX Link, FX 100M, TX 100M
Package Contents	2 × Media Converters 2 × Power Adapters 1 × User Manual 1 × Qualification Card

Why Choose Sangken Technologies

Sangken Technologies provides high-quality, certified fiber media converters designed for reliable performance across industrial and enterprise networks. With a focus on durability, energy efficiency, and plug-and-play installation, our solutions are backed by expert support and trusted service. Customers choose Sangken for consistent network performance and professional guidance.
