Product Overview

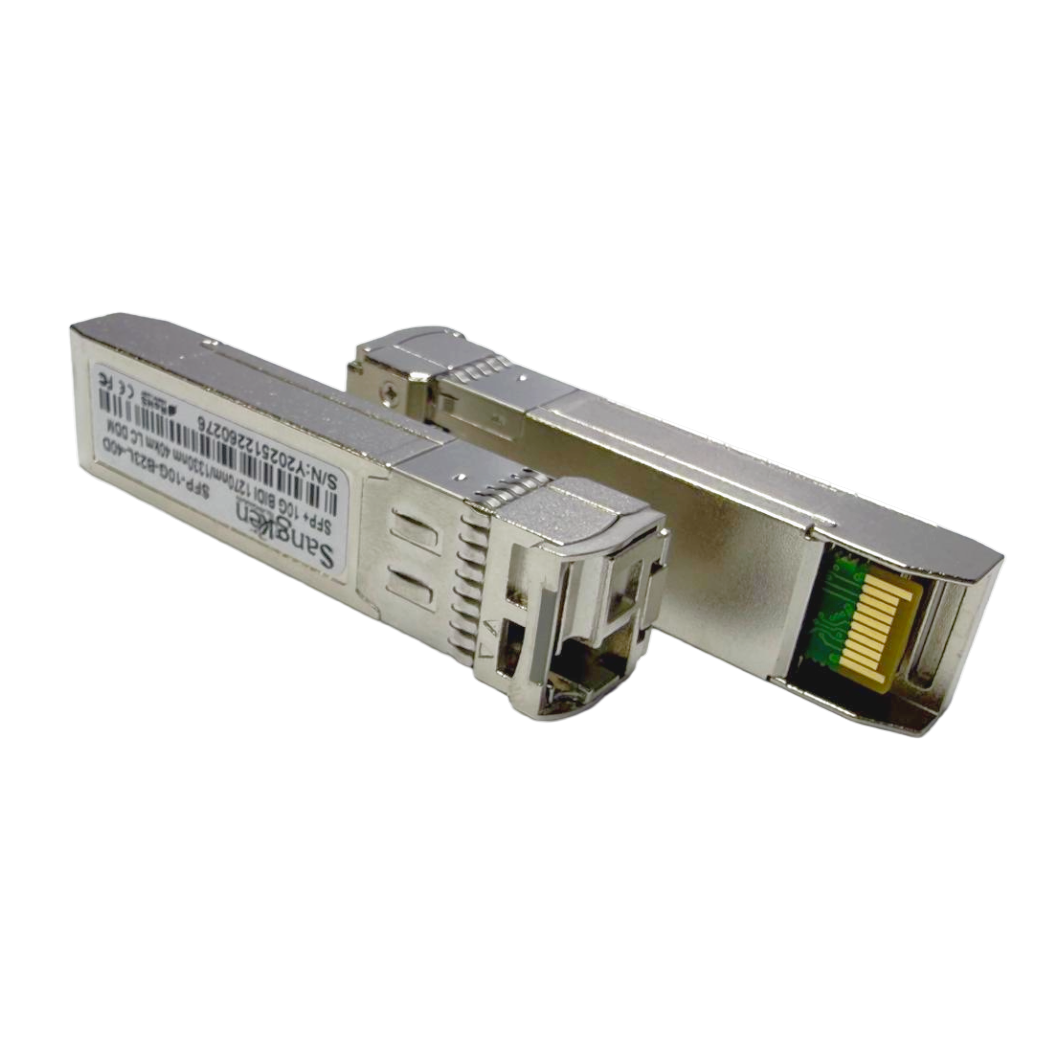

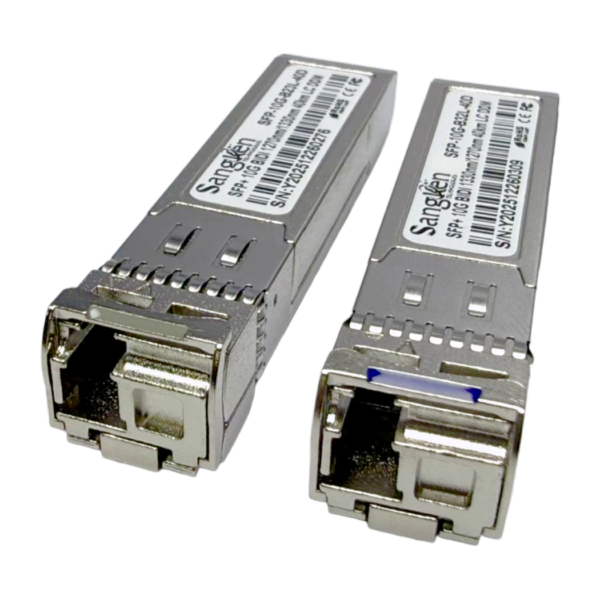

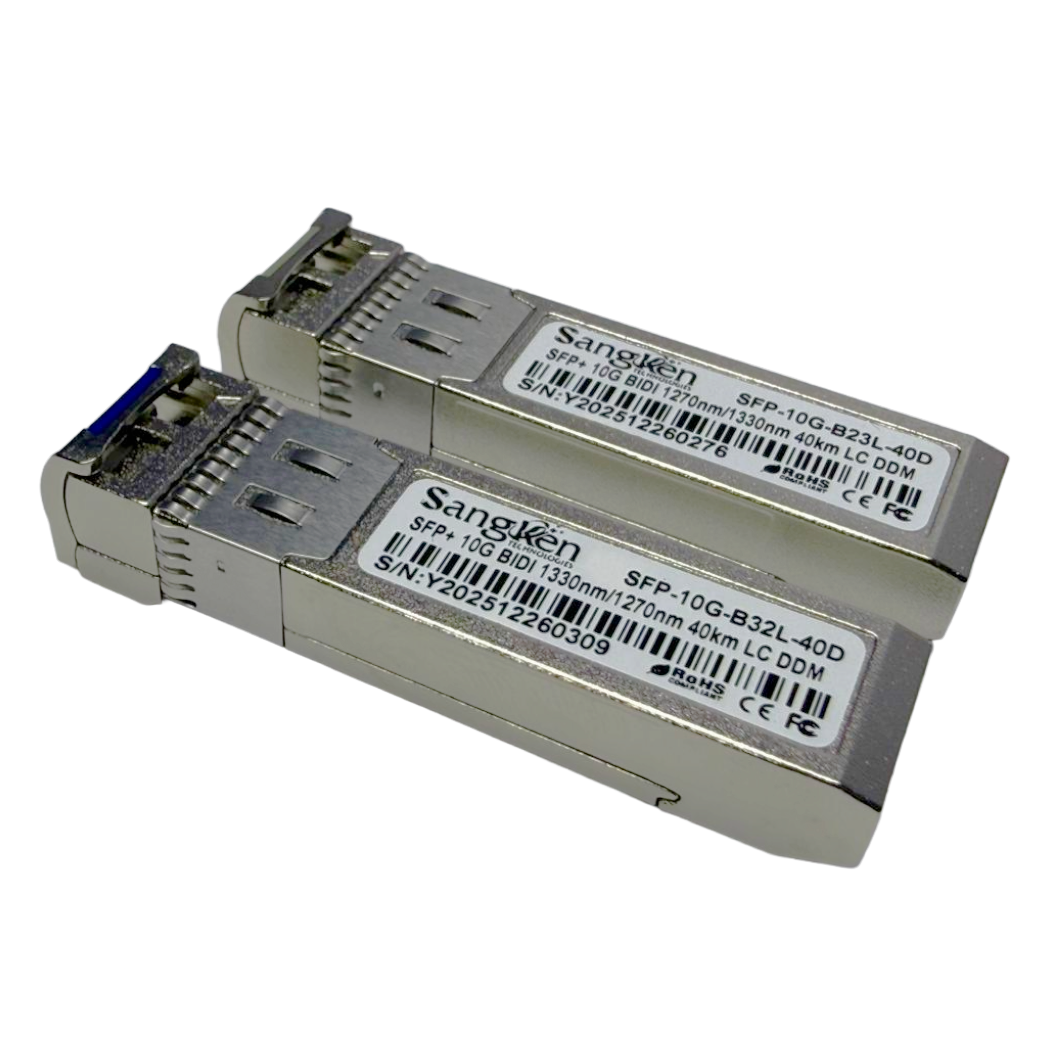

10G SFP+ BIDI Optical Transceiver is a high-performance bidirectional optical module designed for 10Gbps Ethernet transmission over single-mode fiber networks. It enables long-distance data communication up to 40 km using a single fiber strand, transmitting and receiving signals on different wavelengths. This SFP+ module operates at a 10.3125Gbps data rate and complies with IEEE 802.3ae 10GBASE standards, making it ideal for data centers, telecom networks, metro fiber infrastructure, and enterprise backbone connectivity. With low power consumption, stable optical performance, and integrated digital diagnostic monitoring (DDM), it provides reliable high-speed connectivity for modern fiber optic networks.
Key Features
-
Supports 10Gbps (10.3125Gbps) data transmission
-
Bidirectional (BiDi) single-fiber technology reduces fiber usage
-
Up to 40 km transmission distance over single-mode fiber
-
1310–1350 nm transmitter wavelength
-
Receiver sensitivity up to -15 dBm for stable long-distance performance
-
Digital Diagnostic Monitoring (DDM) for real-time status monitoring
-
Low power consumption ≤1.0 W
-
Standard SFP+ form factor for hot-pluggable networking devices
-
Operating temperature 0°C to 70°C
-
Compatible with 10G switches, routers, and optical networking equipment
Technical Specifications (10G SFP+ BIDI Optical Transceiver)
| Parameter | Specification |
|---|---|
| Model | SFP-10G-B32L-40D |
| Form Factor | SFP+ |
| Data Rate | 10.3125 Gbps |
| Transmission Distance | Up to 40 km |
| Fiber Type | Single Mode Fiber (SMF) |
| Transmitter Wavelength | 1310 – 1350 nm |
| Receiver Wavelength | 1250 – 1290 nm |
| Average Optical Power | 1 – 5 dBm |
| Receiver Sensitivity | -15 dBm |
| Power Supply Voltage | 3.13 – 3.47 V |
| Power Consumption | ≤ 1.0 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% – 85% (non-condensing) |
| Connector Type | LC |
| Standards | IEEE 802.3ae 10GBASE SFP+ MSA |
| Digital Diagnostics | Temperature Voltage TX Power RX Power Bias Current |
Why Choose Sangken Technologies
Sangken Technologies supplies high-quality fiber optic networking products designed for reliability and performance. Our optical transceivers are carefully tested to ensure stable long-distance transmission, compatibility with major networking equipment, and long operational life. With strong industry expertise, competitive pricing, and dependable technical support, Sangken Technologies is a trusted partner for telecom operators, network engineers, and system integrators.
