Product Overview

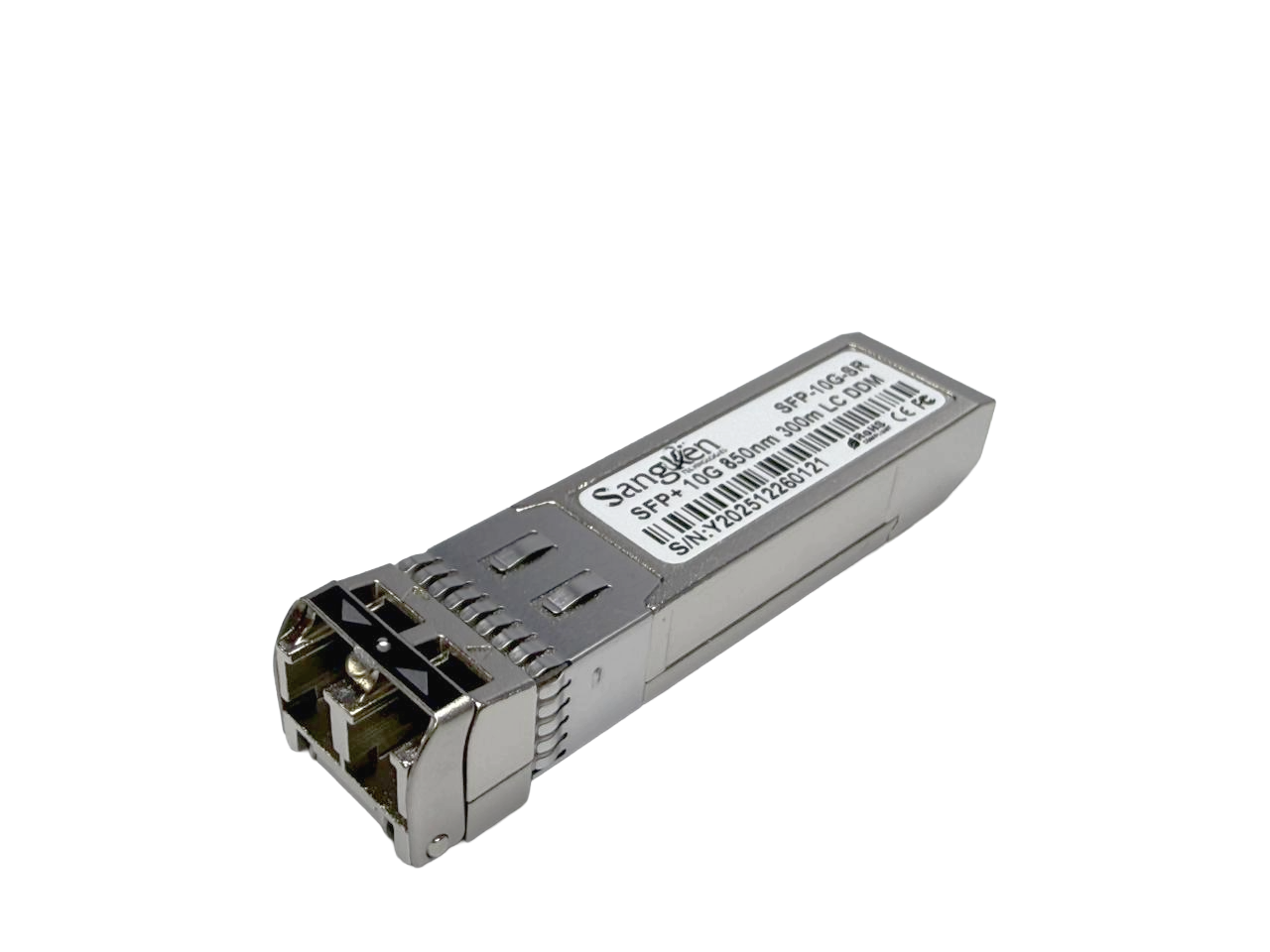

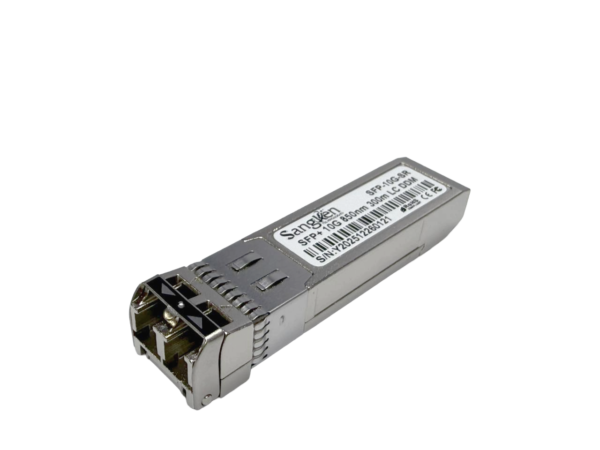

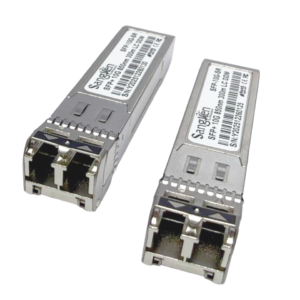

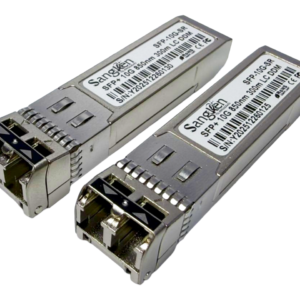

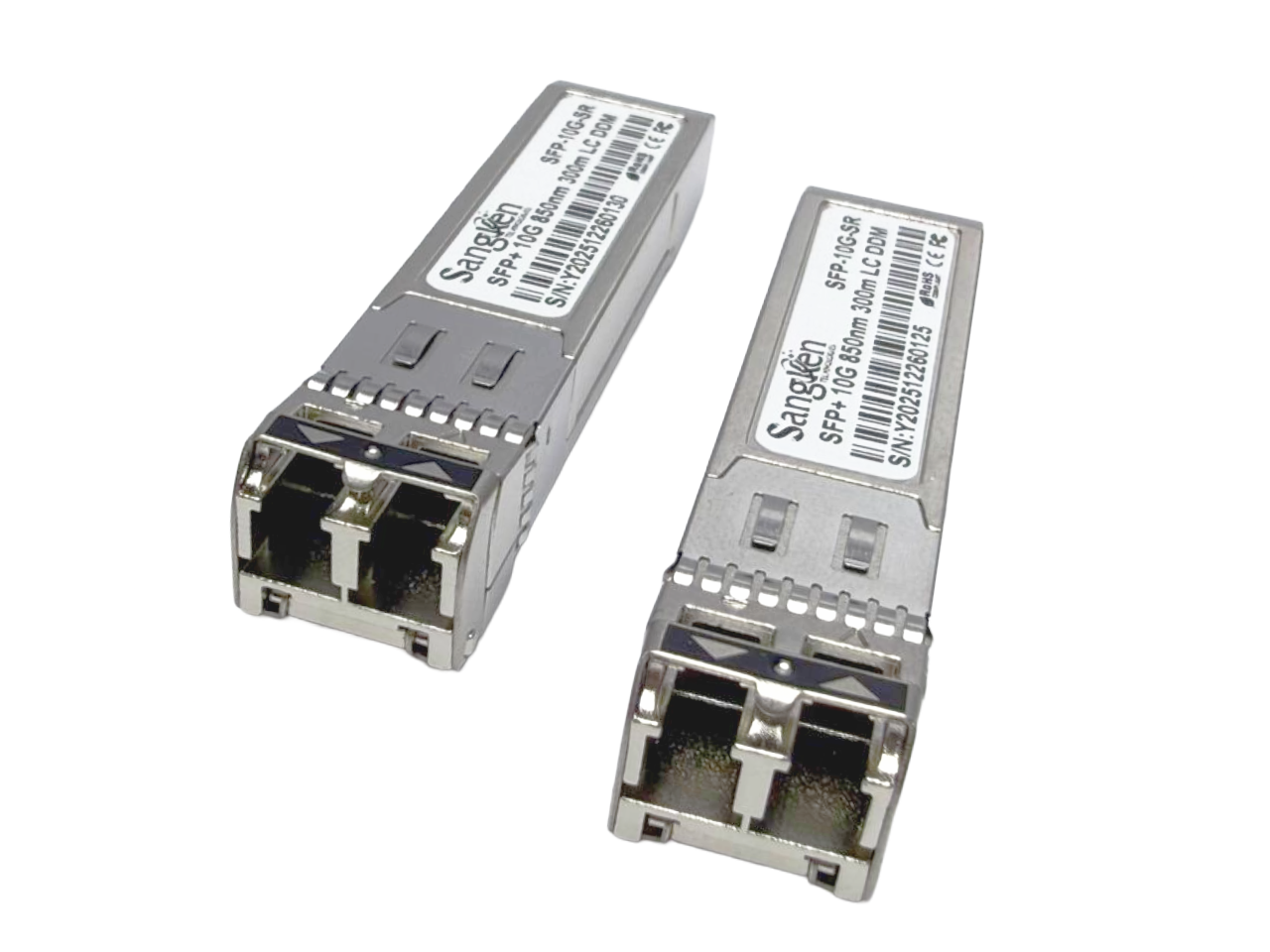

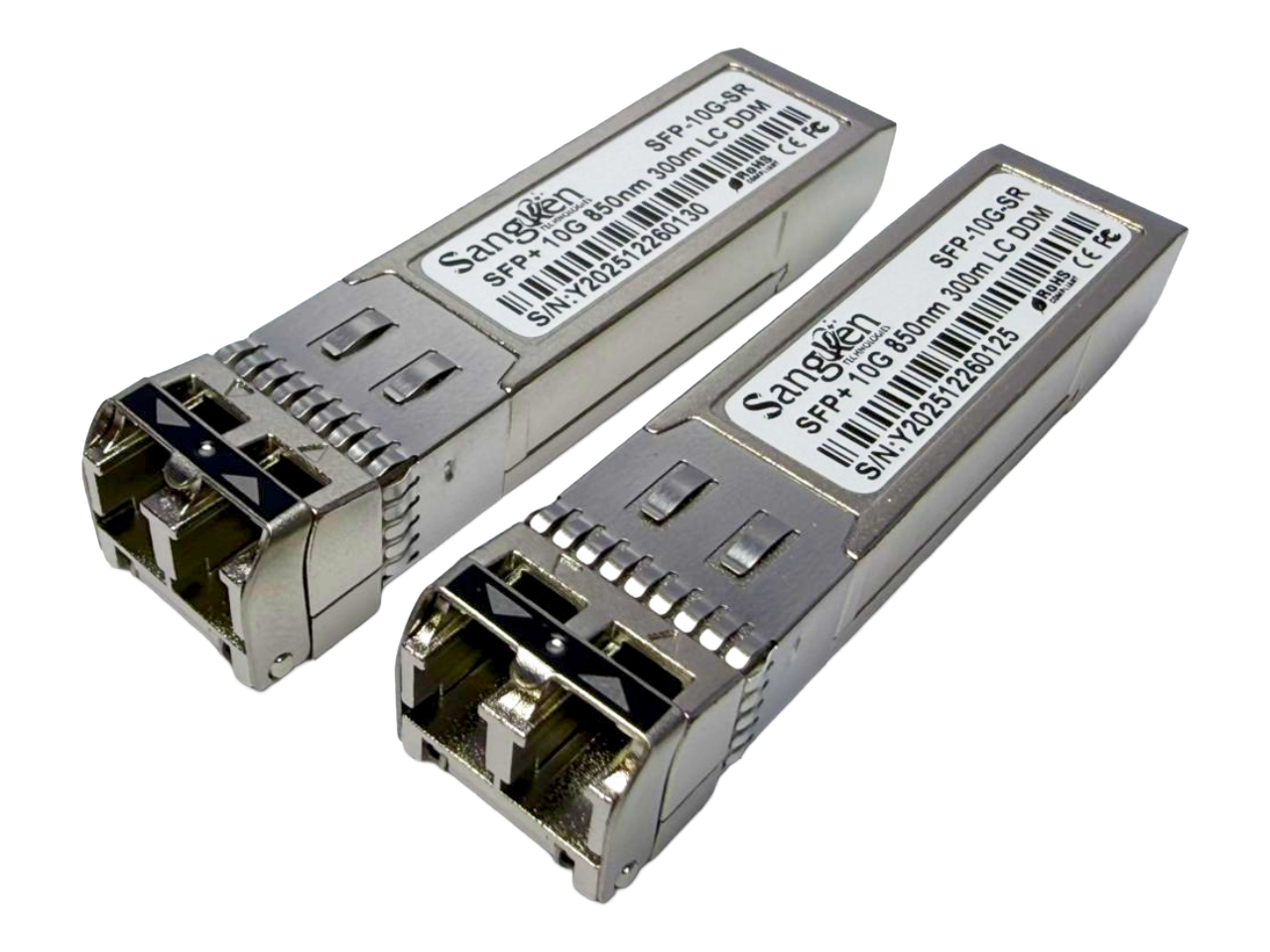

10G SFP+ SR Optical Transceiver is a high-speed optical module designed for 10Gbps Ethernet data transmission over multimode fiber (MMF). It supports transmission distances up to 300 meters using an 850nm VCSEL laser, making it ideal for data centers, enterprise networks, storage area networks (SAN), and high-speed computing environments. The module complies with IEEE 802.3ae 10GBASE-SR standards and features a hot-pluggable SFP+ form factor, low power consumption, and integrated Digital Diagnostic Monitoring (DDM) for real-time performance monitoring and reliable network operation.

Key Features

• Supports 10.3125Gbps data transmission

• Up to 300 m transmission distance over multimode fiber

• 850nm VCSEL laser transmitter and PIN receiver

• SFP+ hot-pluggable form factor with LC duplex connector

• Low power consumption ≤ 1.0W

• SFI high-speed electrical interface

• Digital Diagnostic Monitoring (DDM) via 2-wire interface

• Excellent EMI and ESD protection

• Operating temperature range 0°C to 70°C

• Fully compliant with IEEE 802.3ae, SFF-8431, and SFF-8472 standards

Technical Specifications (10G SFP+ SR Optical Transceiver)

Why Choose Sangken Technologies

At Sangken Technologies, we supply reliable fiber optic networking equipment designed for professional telecom and networking applications. Our optical transceivers undergo strict quality testing to ensure stable high-speed transmission, compatibility with major networking brands, and long operational life. With strong technical expertise, competitive pricing, and responsive support, Sangken Technologies helps customers build efficient, scalable, and reliable fiber optic networks.
