Product Overview

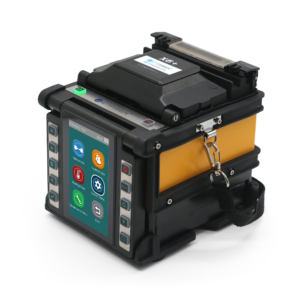

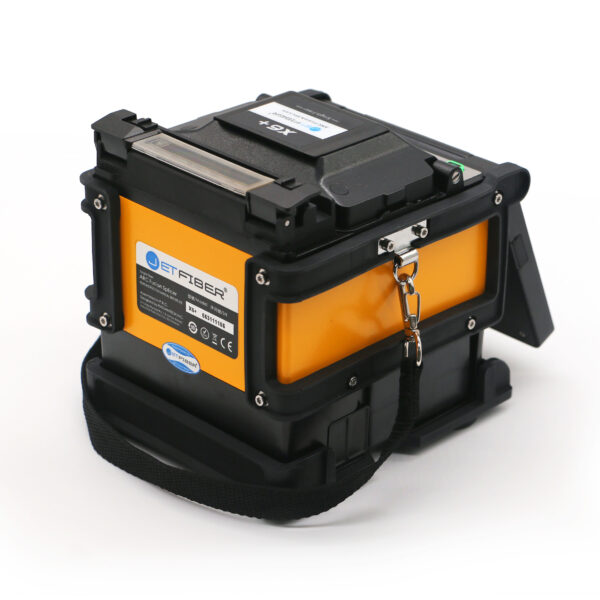

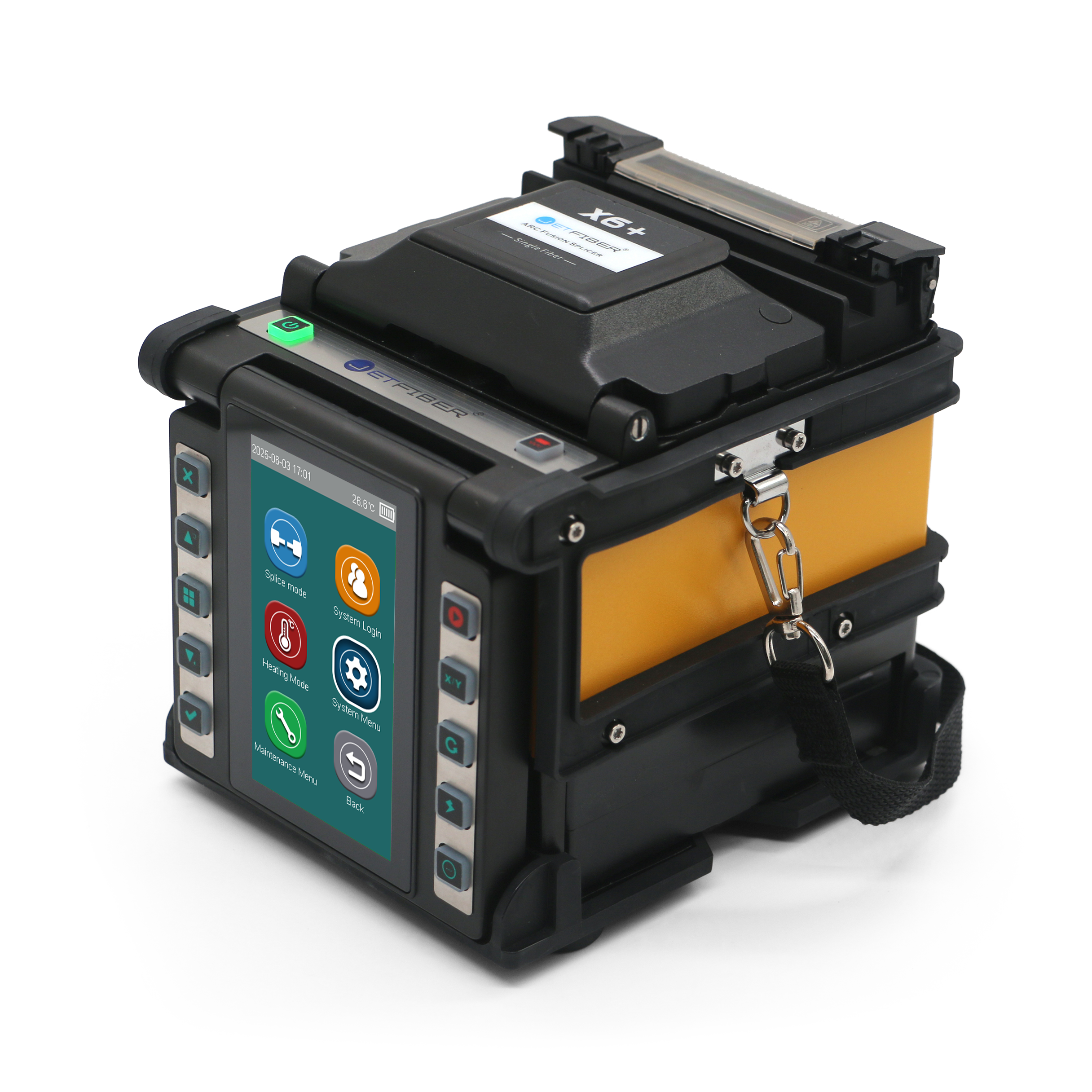

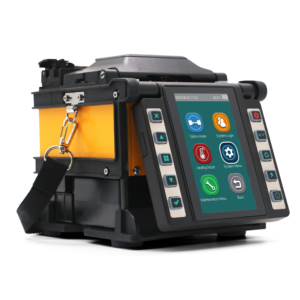

Fusion Splicing Machine Jetfiber X6+ is a high-performance fiber splicing machine designed for FTTH, backbone, and 5G network applications. It supports advanced fiber types, including G.654E fiber, making it suitable for modern high-speed telecom networks.
With a high-precision GPU processor, dual-axis core alignment, and powerful magnification, the X6+ delivers accurate, low-loss splicing even in demanding field conditions. Its large-capacity battery allows technicians to work longer without frequent charging, improving efficiency and productivity on site.
The X6+ is built for professionals who need reliability, speed, and accuracy in daily fiber installation and maintenance work.
| Specification | Details |
|---|---|
| Splicing Method | Core alignment (X & Y dual-axis view) |
| Fiber Types Supported | SM, MM, DS, NZ/NZDS, BI, EB |
| Special Fiber Mode | G.654E fiber (5G network support) |
| Typical Splice Loss | SM: 0.01 dB MM: 0.01 dB DS: 0.02 dB NZ/NZDS: 0.02 dB BI: 0.02 dB EB: 0.02 dB |
| Fiber Cladding Diameter | 80–150 µm |
| Fiber Coating Diameter | 100–3000 µm |
| Cleaved Fiber Length | 5–16 mm |
| Magnification | 320× (X & Y dual view) 760× (X or Y single view) |
| Battery Capacity | 8400 mAh high-capacity battery |
| Battery Performance | More than 450 splice & heat cycles |
| Processor | Integrated high-performance GPU processor |
| Fiber Holder | Supported |
| Operating Use | Field & indoor fiber installation |
Standard Accessories Included
-
X6+ Fusion Splicer
-
High-capacity battery (BAT-01)
-
Adapter & charging cable
-
High-precision cleaver (JF-50)
-
Extra electrodes (JE-03)
-
Fiber stripper (CFS-05)
-
Drop cable stripper
-
Alcohol bottle
-
Cooling tray
-
USB cable (JU-01)
-
Carrying case, shoulder strap & hand strap
Why Choose Sangken Technologies?
At Sangken Technologies, we are committed to designing and producing high-quality fiber optic products that empower technicians to “Foresee the Future”. Our X6+ Fusion Splicer is engineered for those who demand precision, durability, and unmatched speed in the field.
Choosing Sangken Technologies means investing in reliability. The X6+ isn’t just a tool; it’s a high-performance partner designed to reduce maintenance through auto-calibrated ARC discharge and provide peace of mind with a integrated time lock function. When your network’s connectivity is on the line, trust the technology that connects by fiber and secures the future.
