Product Overview

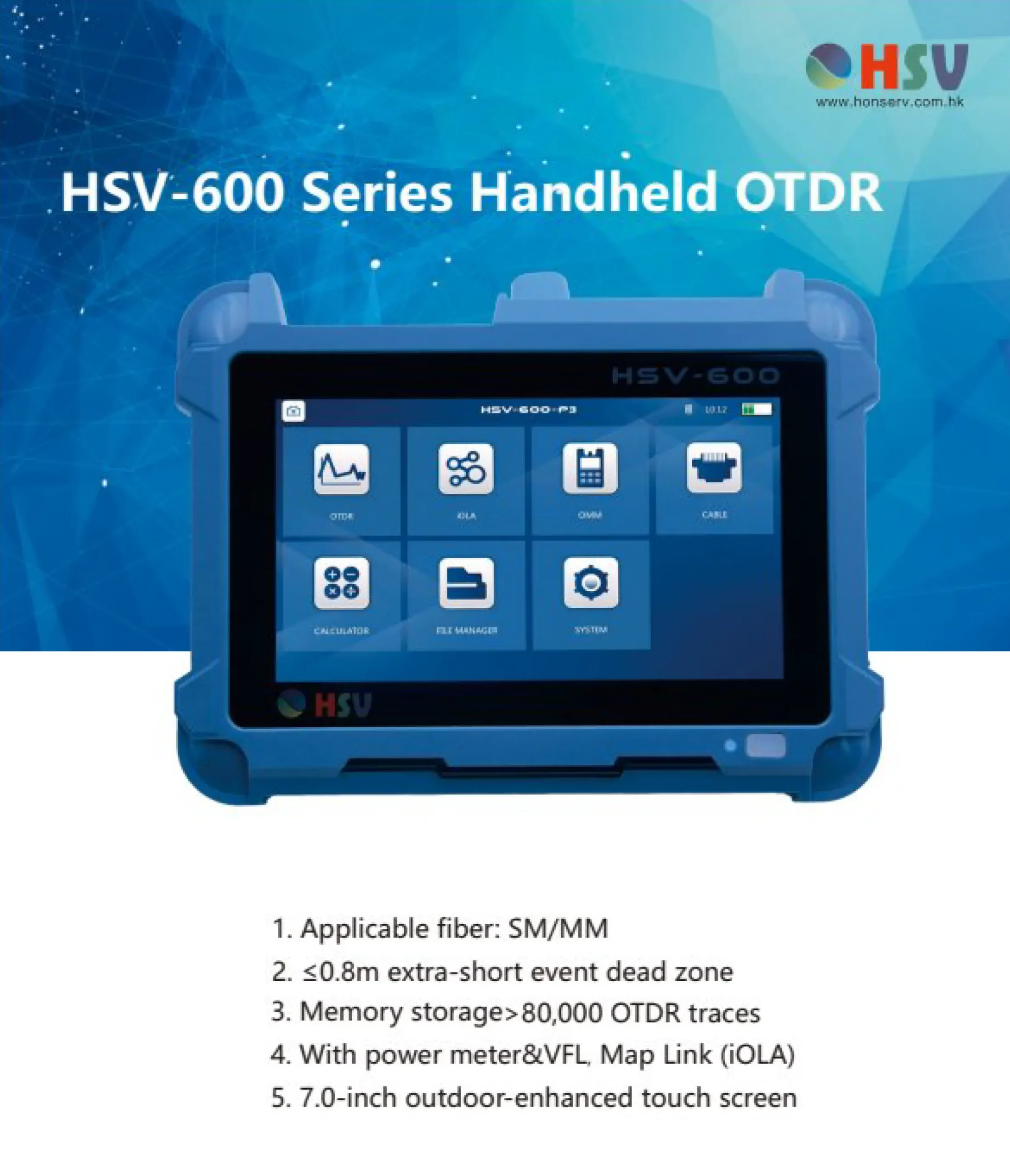

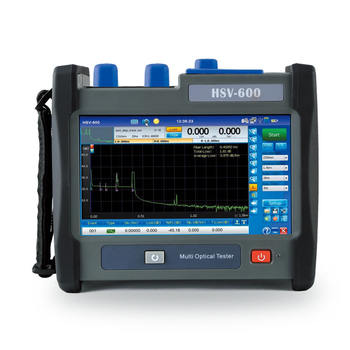

The HSV-600 Series Handheld OTDR from Sangken Technologies is a high-performance fiber optic testing instrument designed to meet the needs of modern telecom, FTTx, and PON network environments. Engineered for field technicians and fiber optic project companies, the HSV-600 Series combines accuracy, portability, and intelligent testing features in a compact and user-friendly design.

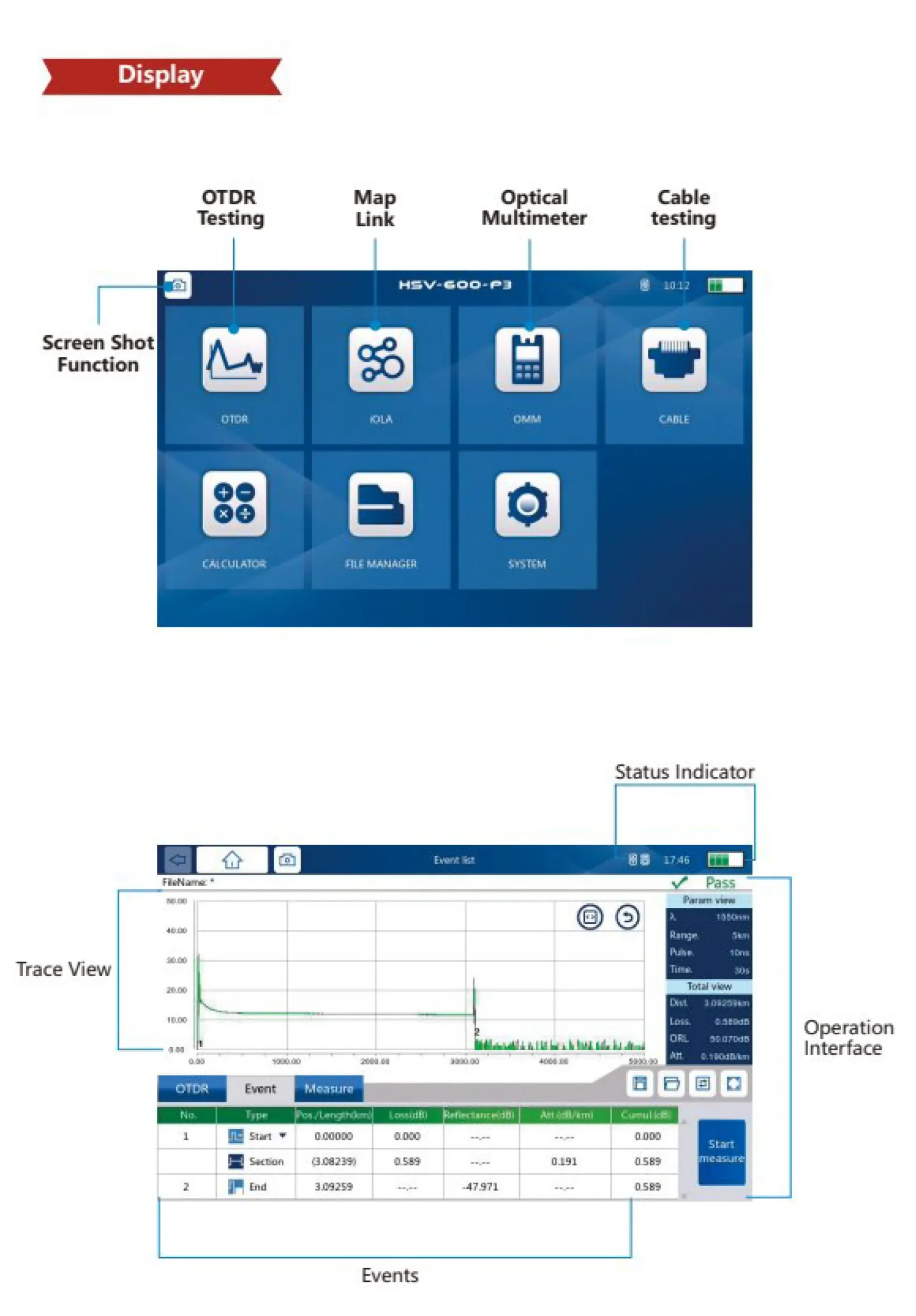

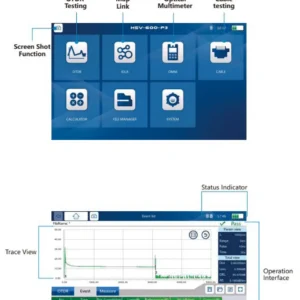

The device is equipped with a 7-inch outdoor-enhanced touch screen with a resolution of 800 × 480, providing clear and vivid visualization even under strong sunlight. Its intuitive graphical user interface allows users to easily analyze OTDR traces, attenuation curves, and fiber events, improving testing efficiency and reducing operation time in the field. Lightweight and handheld, the HSV-600 is ideal for both installation and maintenance tasks.

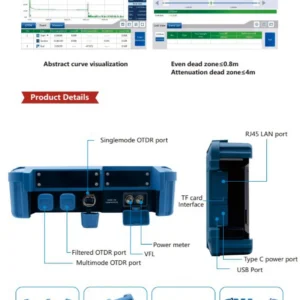

Supporting single-mode (SM), multi-mode (MM), and FTTx/PON fiber networks, the HSV-600 Series offers broad application flexibility. It features an ultra-short event dead zone of ≤0.8 meters and an attenuation dead zone of ≤4 meters, enabling precise detection of closely spaced events such as connectors and splices. With a high dynamic range of up to 45/43 dB, the device ensures accurate testing over long-distance fiber links.
The HSV-600 Series Handheld OTDR integrates multiple essential testing functions into one powerful unit. In addition to OTDR testing, it includes a built-in optical power meter, visual fault locator (VFL), and intelligent fiber path (iOLM) analysis, allowing technicians to quickly identify faults and understand fiber link conditions without complex manual interpretation. Optional light source and filtered ports further enhance testing versatility.

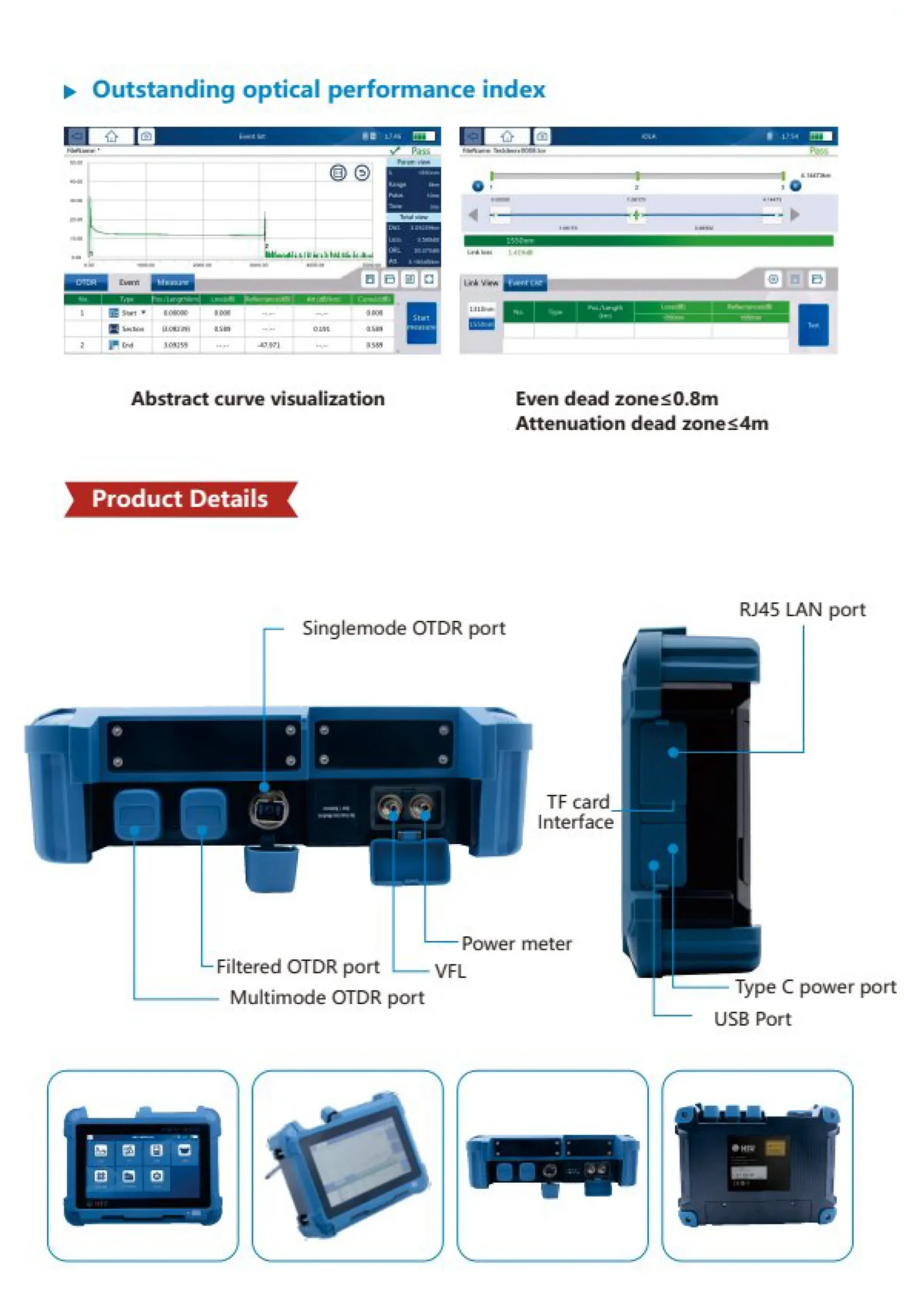

Designed for extended field use, the OTDR is powered by a high-capacity built-in lithium battery that provides up to 12 hours of continuous operation on a single charge. This long battery life ensures uninterrupted testing during full work shifts. The device also supports USB, SD card, and RJ45 LAN (10/100 Mbps) interfaces for fast data transfer, reporting, and remote analysis.

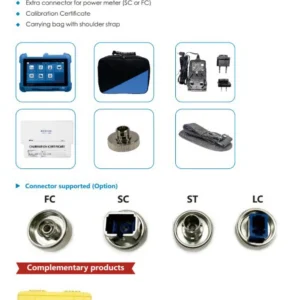

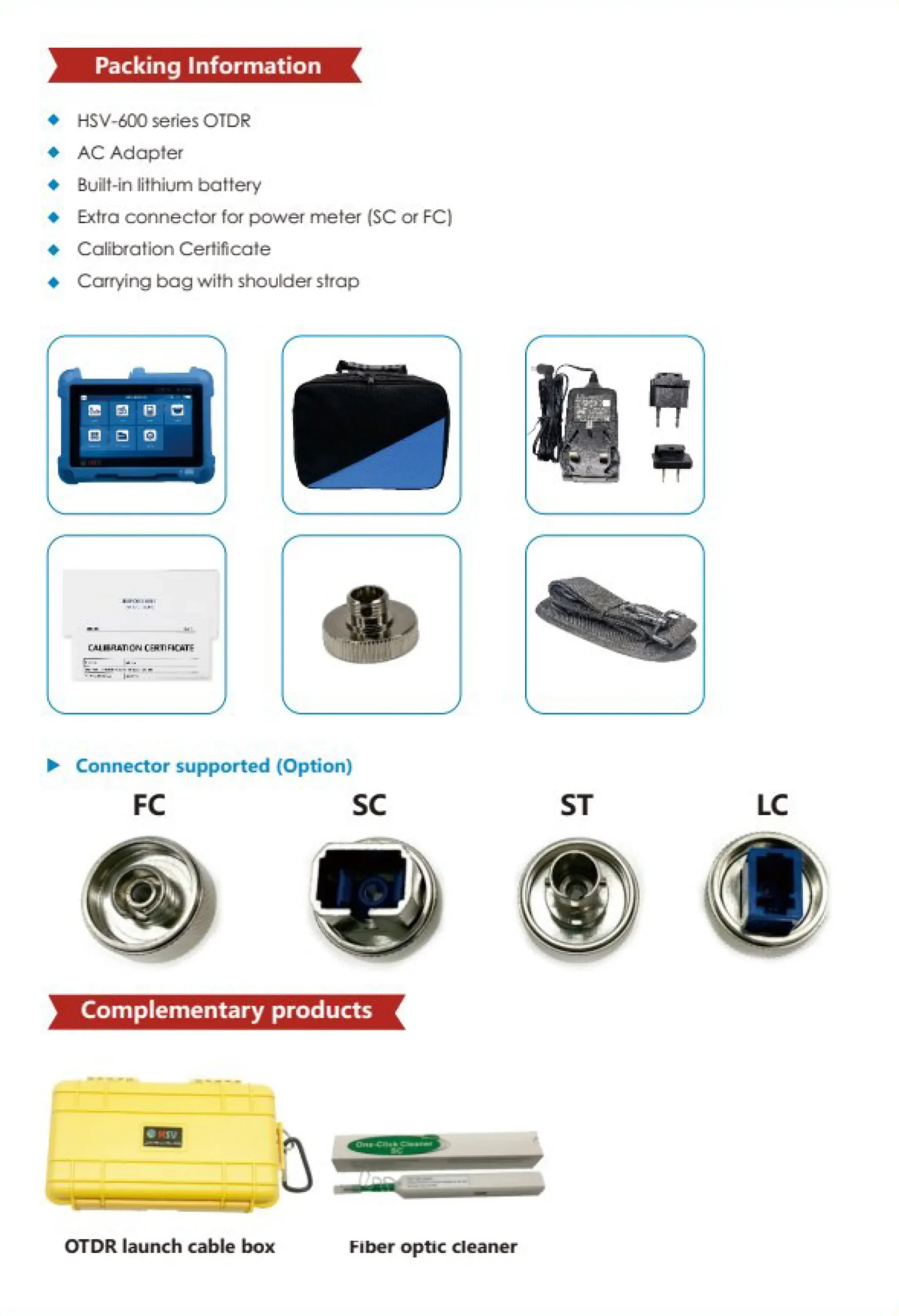

With internal memory capable of storing more than 80,000 OTDR traces, the HSV-600 Series offers excellent data management for large-scale projects. Each unit is supplied with essential accessories, including an AC adapter with selectable plugs, stylus, calibration certificate, compliance certificate, and a durable carrying bag for safe transport.
With its outstanding optical performance, stable internal parameters, and refined design, the HSV-600 Series Handheld OTDR stands out as a reliable and efficient solution for fiber optic network installation, acceptance testing, maintenance, and troubleshooting. It reflects Sangken Technologies’ commitment to delivering dependable, high-quality fiber testing solutions tailored to real-world operational demands.

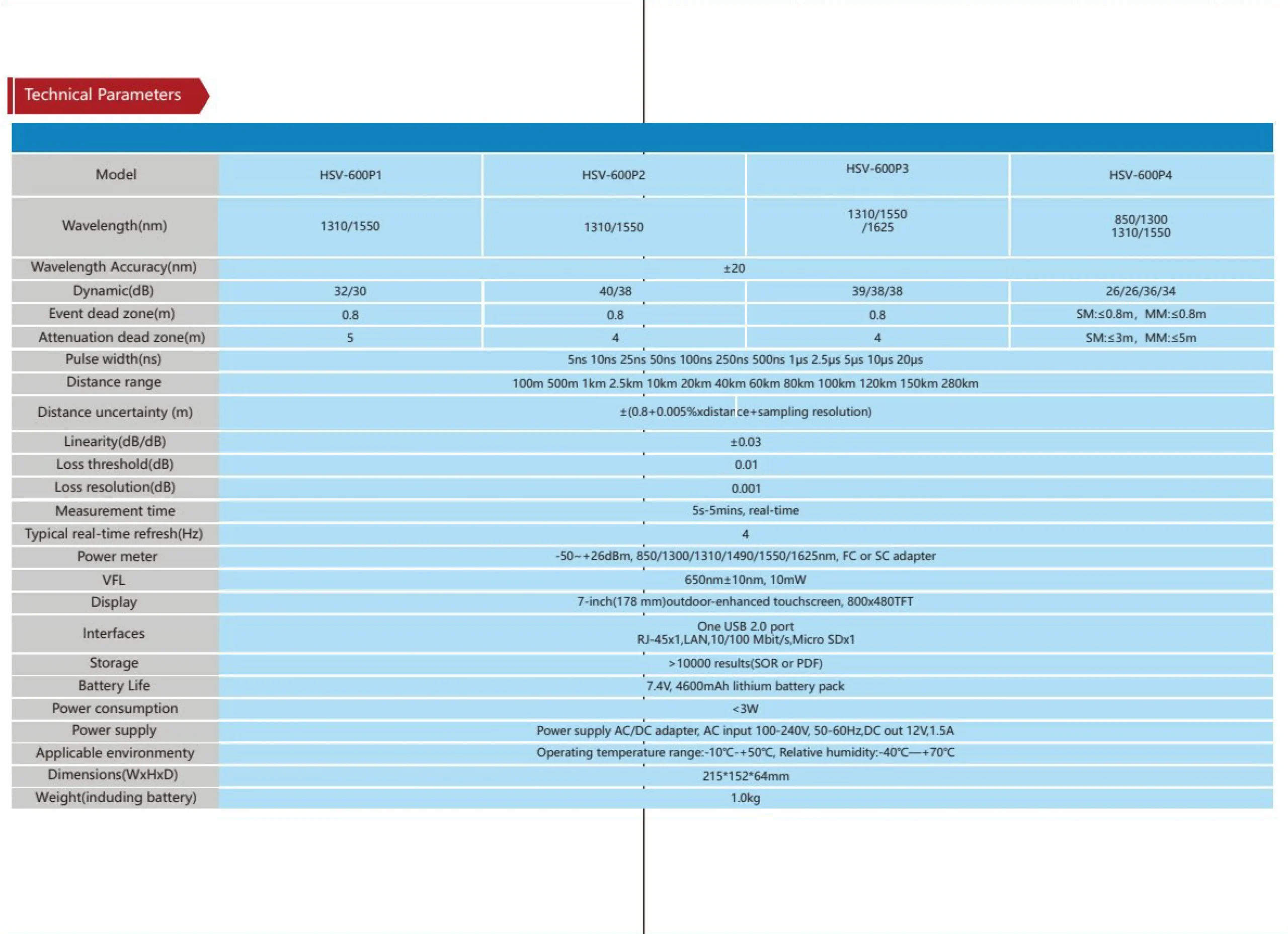

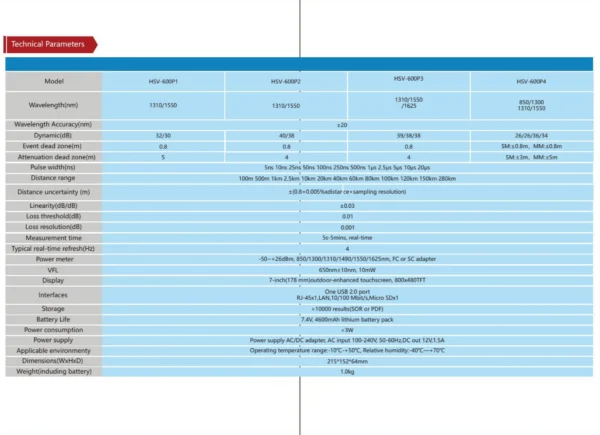

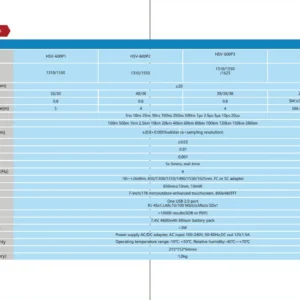

Technical Specifications – HSV-600 Series Handheld OTDR
| Parameter | HSV-600P1 | HSV-600P2 / HSV-600P3 | HSV-600P4 |
|---|---|---|---|
| Wavelength (nm) | 1310 / 1550 | 1310 / 1550 1310 / 1550 / 1625 |
850 / 1300 1310 / 1550 |
| Wavelength Accuracy (nm) | ±20 | ||
| Dynamic Range (dB) | 32 / 30 | 40 / 38 39 / 38 / 38 |
26 / 26 / 36 / 34 |
| Event Dead Zone (m) | 0.8 | 0.8 | SM ≤ 0.8 m, MM ≤ 0.8 m |
| Attenuation Dead Zone (m) | 5 | 4 | SM ≤ 3 m, MM ≤ 5 m |
| Pulse Width | 5 ns, 10 ns, 25 ns, 50 ns, 100 ns, 250 ns, 500 ns, 1 µs, 2.5 µs, 5 µs, 10 µs, 20 µs |
||
| Distance Range | 100 m, 500 m, 1 km, 2.5 km, 10 km, 20 km, 40 km, 60 km, 80 km, 100 km, 120 km, 150 km, 280 km |
||
| Distance Uncertainty (m) | ±(0.8 + 0.005% × distance + sampling resolution) | ||
| Linearity (dB/dB) | ±0.03 | ||
| Loss Threshold (dB) | 0.01 | ||
| Loss Resolution (dB) | 0.001 | ||
| Measurement Time | 5 s – 5 min, real-time | ||
| Typical Real-Time Refresh | 4 Hz | ||
| Optical Power Meter | -50 ~ +26 dBm, 850 / 1300 / 1310 / 1490 / 1550 / 1625 nm, FC or SC adapter |
||
| VFL | 650 nm ±10 nm, 10 mW | ||
| Display | 7-inch (178 mm) outdoor-enhanced touchscreen, 800 × 480 TFT |
||
| Interfaces | USB 2.0 ×1 RJ-45 ×1 (LAN, 10/100 Mbps) Micro SD ×1 |
||
| Storage | >10,000 test results (SOR or PDF) | ||
| Battery | 7.4 V, 4600 mAh lithium battery pack | ||
| Power Consumption | < 3 W | ||
| Power Supply | AC/DC adapter AC input: 100–240 V, 50–60 Hz DC output: 12 V / 1.5 A |
||
| Operating Environment | Temperature: -10 ℃ to +50 ℃ Relative Humidity: 40% – 70% |
||
| Dimensions (W × H × D) | 215 × 152 × 64 mm | ||
| Weight (including battery) | 1.0 kg | ||
