Product Description

The Jetfiber Fusion Splicing Machine H5+ sets a new standard for speed in the field. Utilizing a specialized SM Fast program, users can achieve fusion in just 5 seconds, complemented by a 12-second heating time that significantly reduces downtime during large-scale deployments. Its auto-calibrated ARC discharge ensures that the machine remains easy to maintain while providing consistent, low-loss splices (0.02dB for SM).

Advanced Core Alignment Technology

Equipped with two 650x cameras and a 4.3-inch high-light color touch screen, the H5+ provides crystal-clear visibility of fiber cores. The core alignment technology ensures precision for various fiber types, including Single Mode (SM), Multi-Mode (MM), and Bend-Insensitive (BI) fibers. Whether working at sea level or at an altitude of 5000m, the H5+ is designed to operate reliably under diverse atmospheric conditions.

Rugged and Portable Design

Built for the rigors of field work, the H5+ features a robust chassis that is windproof, waterproof, dustproof, and anti-shock. Its handheld form factor and 1.5kg weight make it easy to transport, while the large-capacity 4000mAh battery supports over 240 splice and heat cycles on a single charge. For added security and management, the device includes a time lock function.

Comprehensive Standard Package

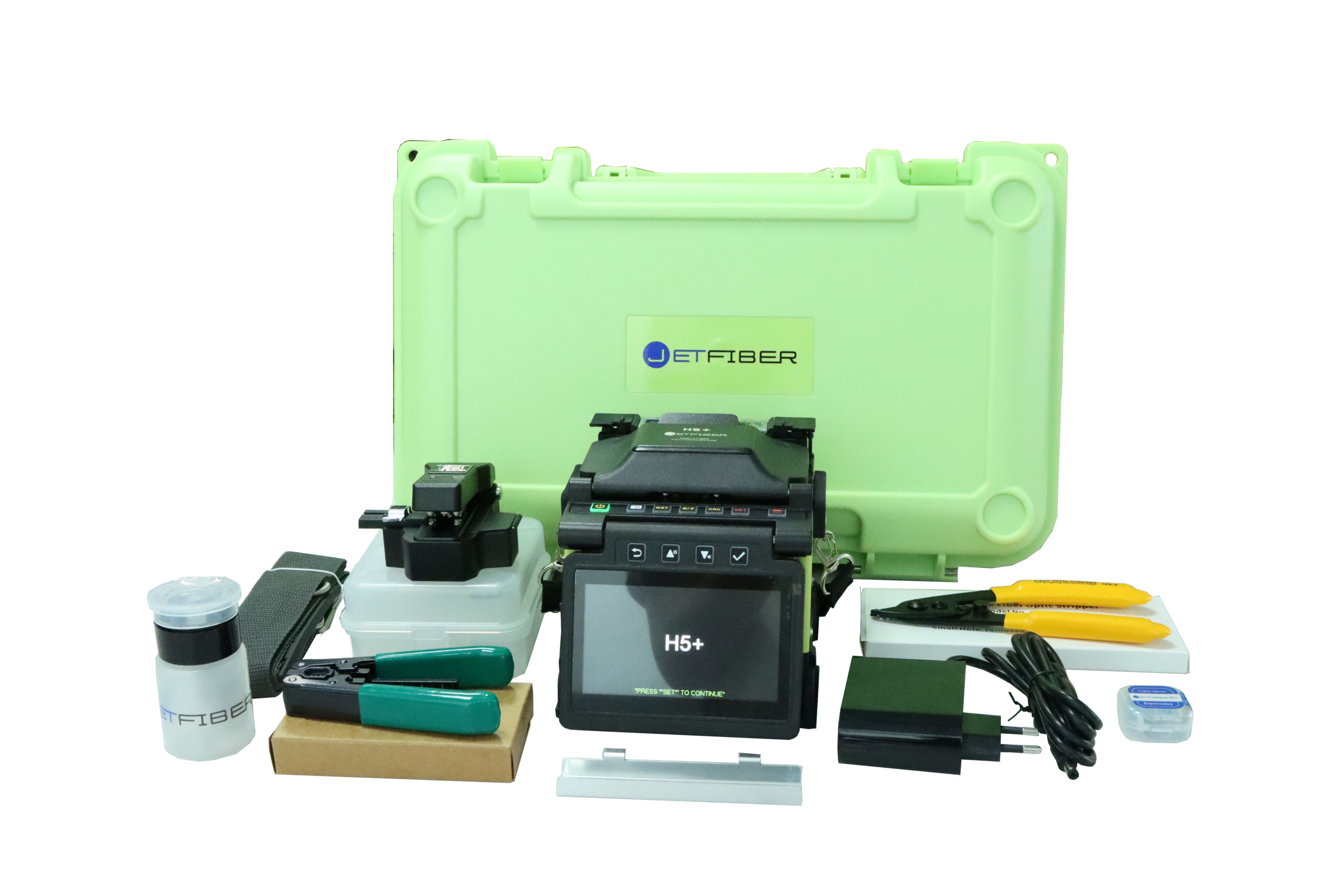

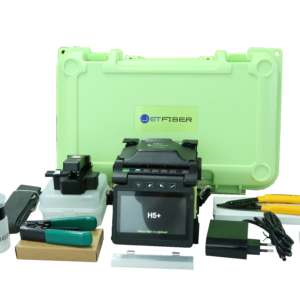

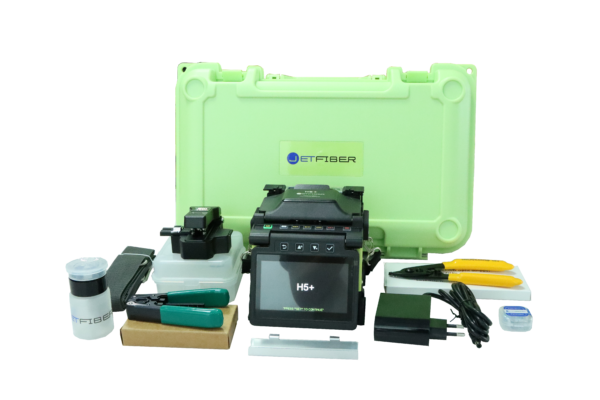

The H5+ comes as a complete kit to ensure you have everything needed for immediate operation:

• Fusion Splicer H5+ and One-step Cleaver JF-60

• High-capacity battery (JF-BAT08) and AC adapter

• Tri-hole Stripper (CFS-2) and Drop cable stripper

• Extra electrodes (5000 splice life) and Alcohol bottle

• Hard carrying case for maximum protection during transit

Technical Specifications

Performance Parameter	Specification
Size & Weight	136 × 141 × 136 mm, 1.5 kg (1.8 kg with battery)
Fiber alignment	Core Alignment
Holder type	Multi-functional fiber holder compatible: bare fiber, drop cable, pigtail
Fiber type	SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZ/NZDS (ITU-T G.655), BI (ITU-T G.657)
Fiber diameter	Cladding diameter: 80–150 μm, Coating: 100–1000 μm
Cleave length	250 μm cladding diameter: 5–16 mm, Over 250 μm cladding diameter: 16 mm
Splicing mode	Max. 100
Splicing time	5 sec [SM Fast ]program
Heating mode	Max. 30
Heating time	Typical 12 sec (Adjustable)
Splice protector	10–60 mm
Splice image capture	Max. 300
Splice data storage	Max. 20,000
Splice loss	SM: 0.02 dB, MM: 0.01 dB, DS: 0.04 dB, NZ/NZDS: 0.04 dB, BI: 0.02 dB
Return loss	>> 60 dB
Loss estimation	Provided
Operation condition	Altitude: 0–5000 m, Humidity: 0–95%, Temperature: -20°C to 50°C, Wind velocity up to 15 m/s
Storage condition	Humidity: 0–95%, Temperature: -40°C to +80°C (Battery: -20°C to +40°C)
Tension	2N
Fiber view	Two 650× cameras observation, 4.3-inch highlight color touch screen
Fiber magnification	650× for X or Y single axis view, 280× both X & Y dual axis view
Port	High speed USB
Electrode life	5000 splices
Power supply	AC 100–240V, 50/60Hz
Battery parameters	4000mAh high capacity battery, more than 240 splice & heat cycles (Full charge within 3 hours)
