Product Overview

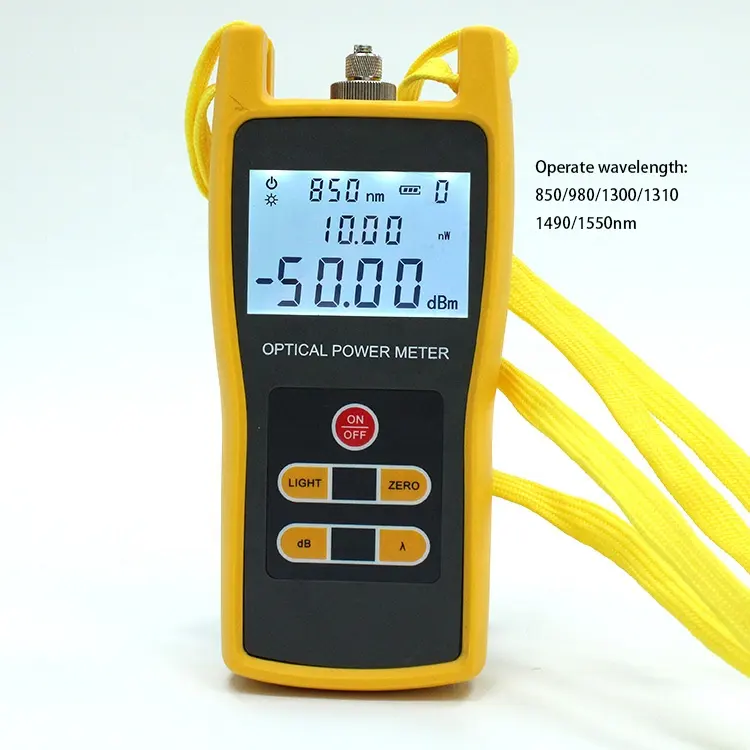

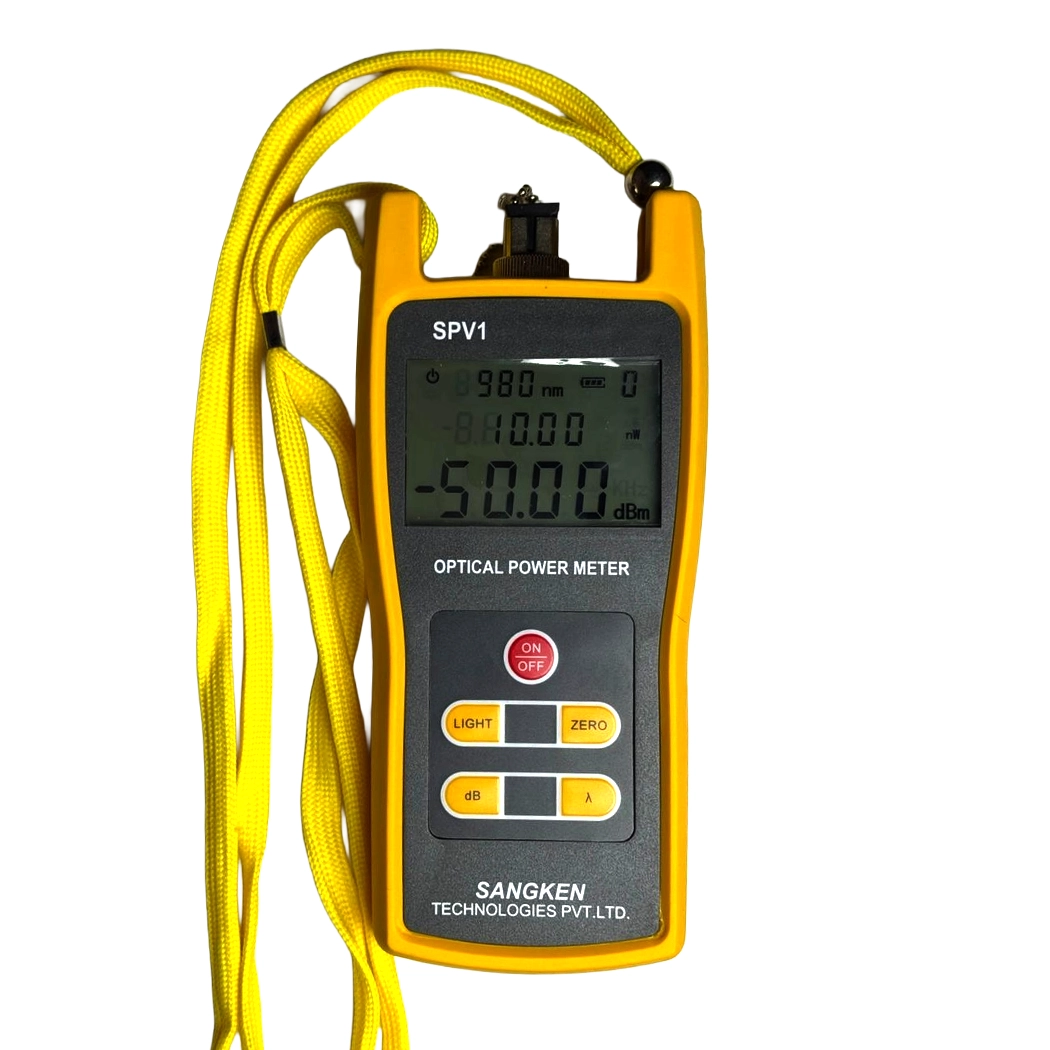

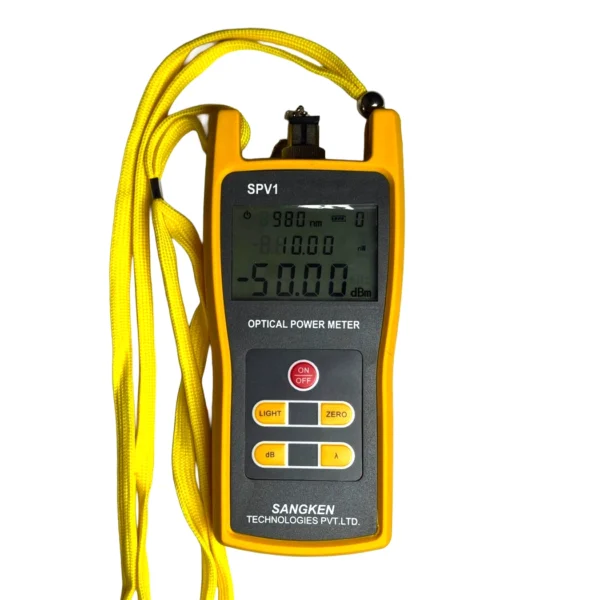

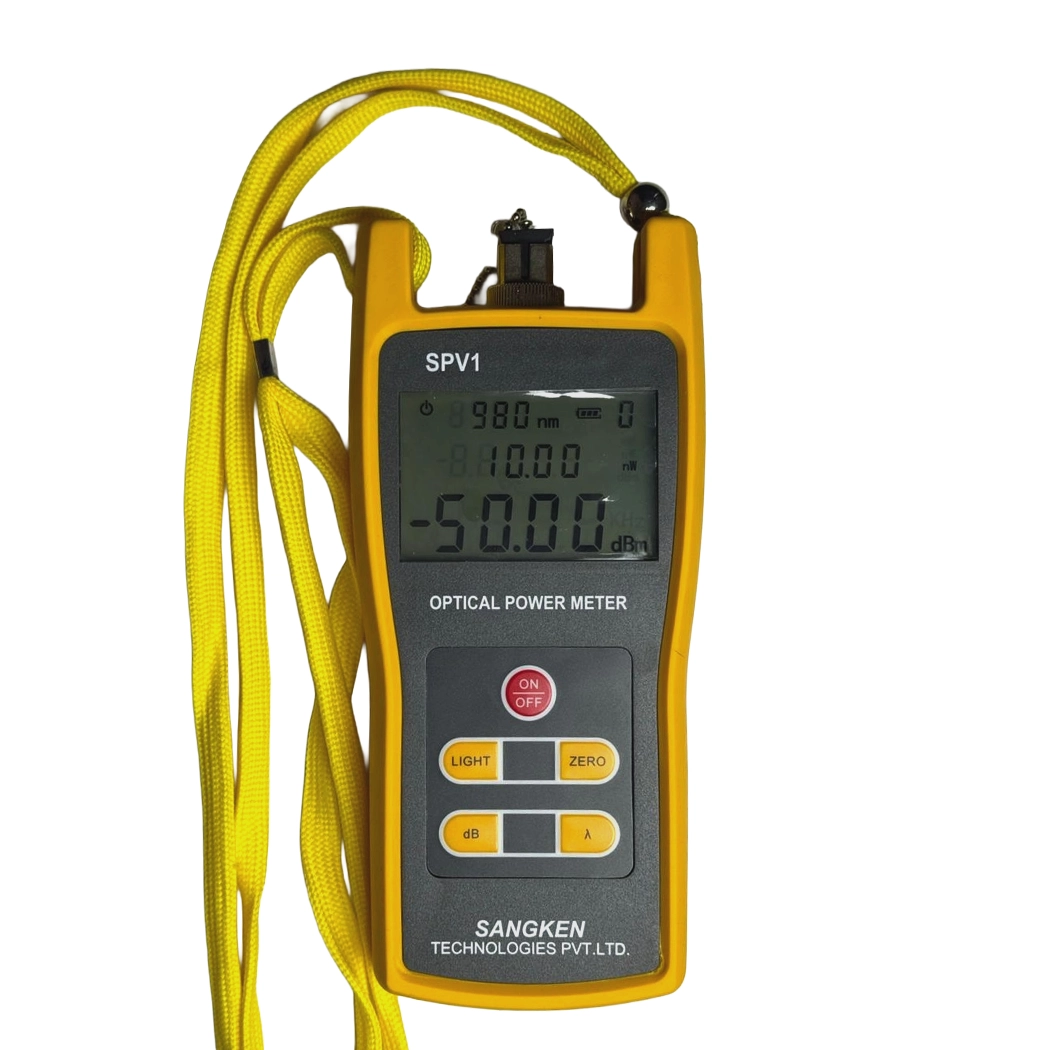

SPV1 Power Meter is a compact and reliable device designed for measuring optical signal power in fiber optic networks. It is widely used by fiber technicians, telecom engineers, and network installers for fiber installation, maintenance, and troubleshooting.
This device supports a wide wavelength range of 800–1700 nm and includes calibration wavelengths commonly used in fiber optic networks such as 850 nm, 980 nm, 1270 nm, 1300 nm, 1310 nm, 1490 nm, and 1550 nm. The high-precision InGaAs detector ensures accurate optical power measurement for both single-mode and multi-mode fiber systems.
With its portable design, simple interface, long battery life, and automatic shutdown function, this handheld optical power meter is ideal for field technicians who need a dependable and easy-to-use fiber testing tool.
Key Features
-
Wide 800–1700 nm wavelength measurement range
-
High precision InGaAs detector
-
Supports common fiber wavelengths 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 nm
-
Accurate optical signal power measurement
-
Compact and lightweight handheld design
-
Large LCD display for easy reading
-
Auto-off function to save battery
-
Long battery operation time
-
Suitable for fiber optic installation, testing, and maintenance
-
Easy operation for field technicians
SPV1 Power Meter Technical Specifications
| Specification | Details |
|---|---|
| Wavelength Range | 800 – 1700 nm |
| Detector Type | InGaAs |
| Measurement Range | -70 dBm ~ +6 dBm (Model A) -50 dBm ~ +26 dBm (Model C) |
| Calibration Wavelengths | 850 / 980 / 1270 / 1300 / 1310 / 1490 / 1550 nm |
| Accuracy | ±0.2 dB |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -25°C ~ +70°C |
| Auto-Off Time | 10 minutes |
| Power Supply | 3 × AA 1.5V batteries |
| Battery Operating Time | ≥130 hours |
| Dimensions | 152 × 74 × 26 mm |
| Weight | About 200 g |
Why Choose Sangken Technologies
Choosing the right supplier for fiber optic equipment is essential for reliable network performance. With Sangken Technologies, you gain access to high-quality fiber optic tools supported by experienced technical professionals.
